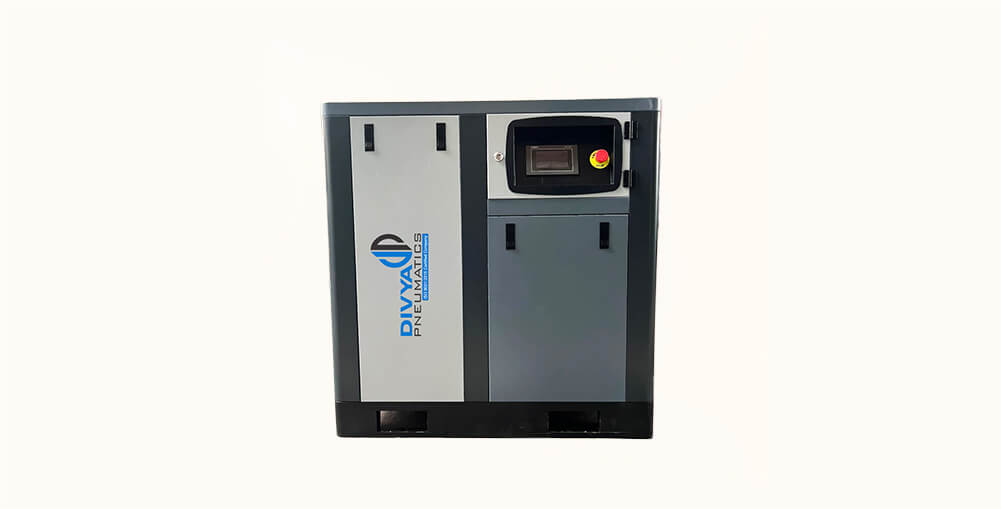

Rotary Screw
Air Compressor

Divya Pneumatics screw compressors are designed around a central component: the air-end. This unit houses a pair of precisely engineered rotors, with the male rotor being directly powered by an electric motor.

  • HP
    7.5 HP To 150 HP
  • BAR
    7 To 13
  • Warranty
    1 Year

Applications

  • Pet Bottling
  • Air Blast Circuit Breakers
  • Pharmaceuticals
  • Gas Transmission & Distribution
  • Defence Establishments
  • Shipyards
  • Oil Exploration
  • Pneumatic-Testing
  • Engine Starting

Rotary Screw Small , Medium & Large Range ( 7.5 To 150 Hp)


MODEL 7 BAR 8 BAR 10 BAR 13 BAR MOTOR POWER HP LEN. MM WDT. MM HEIGHT MM WGT. KG AIR CONN.
FAD FAD FAD FAD
M3/MIN CFM M3/MIN CFM M3/MIN CFM M3/MIN CFM
DPS 7.5 0.85 30 0.79 28 0.71 25 0.62 22 7.5 870 760 1120 286 3/4”
DPS 10 1.13 40 0.99 35 0.91 32 0.79 28 10 870 760 1120 292 3/4”
DPS 15 1.70 60 1.61 57 1.42 50 1.22 43 15 870 760 1120 351 3/4”
DPS 20 2.38 84 2.29 81 1.98 70 1.81 64 20 870 760 1120 489 3/4”
DPS 25 3.29 116 3.00 106 2.61 92 2.32 82 25 1470 1115 1175 504 1 1/4”
DPS 30 3.77 133 3.51 124 3.29 116 2.89 102 30 1470 1115 1175 517 1 1/4”
DPS 40 5.10 180 4.98 176 4.19 148 3.68 130 40 1470 1115 1175 610 1 1/2”
DPS 50 6.46 228 6.29 222 5.81 205 5.30 187 50 1450 1600 1480 650 1 1/2”
DPS 60 8.13 287 8.01 283 6.80 240 6.00 212 60 1850 1600 1480 1050 2”
DPS 75 10.39 367 10.00 353 8.50 300 7.59 268 75 1850 1600 1480 1250 2”
DPS 100 13.82 488 13.31 470 11.70 413 10.00 353 100 2340 1740 2000 1760 2 1/2”
DPS 125 16.51 583 16.00 565 14.50 512 12.52 442 125 2340 1740 2000 1890 DN 80
DPS 150 20.25 715 19.97 705 17.42 615 15.58 550 150 2340 1740 2000 2350 DN 80
