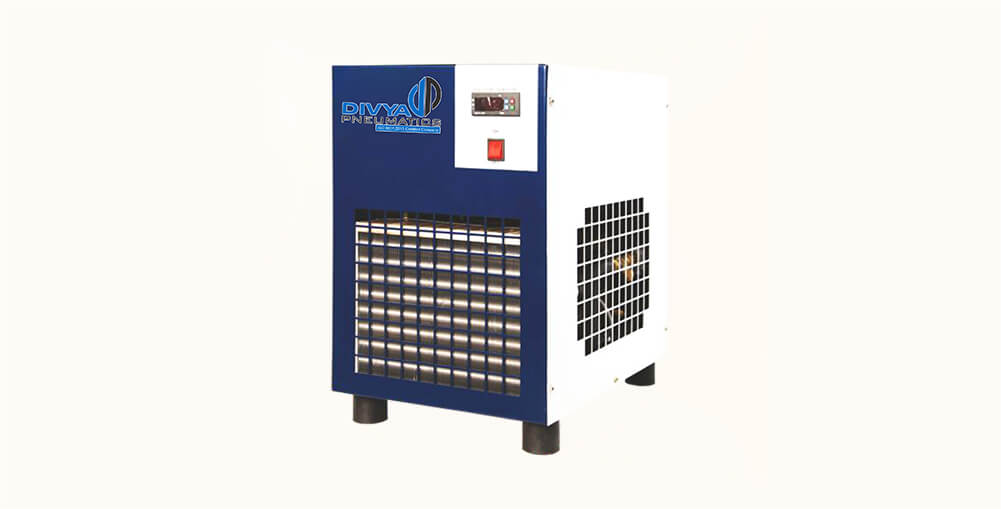

Air Dryer - 20 To 300 CFM
  • Rate Power (kW)
    0.28 To 2.0
  • Net Weight (Kg)
    45 To 160
  • Warranty
    1 Year

Features

  • Aluminium Heat Exchanger
  • Energy Efficient Compressor
  • C&E Refrigerant
  • Timer Based Drain Valve
  • Unique Multi-functional Controller
  • Compact Design

Technical Specifications


       MODEL        NORMAL CAPACITY (CFM) ELECTRICAL CONNECTION AIR CONNECTION (IN/OUT) RATE POWER (kW) OVERALL DIMENSION (MM) NET WEIGHT (Kg)
220V/1P/50HZ 415V/3P/50HZ
D2KD 002 20 1/2" BSP(F) 0.28 365X500X550 45
D2KD 004 40 1/2" BSP(F) 0.41 365X500X550 47
D2KD 006 60 1" BSP(F) 0.48 555X575X500 70
D2KD 008 80 1" BSP(F) 0.65 555X575X500 75
D2KD 010 100 1" BSP(F) 0.72 630X660X550 110
D2KD 015 150 11/2" BSP(F) 1.24 630X660X550 120
D2KD 020 200 11/2" BSP(F) 1.24 630X660X550 130
D2KD 025 250 2" BSP(F) 2.0 900X900X1230 150
D2KD 030 300 2" BSP(F) 2.0 900X900X1230 160

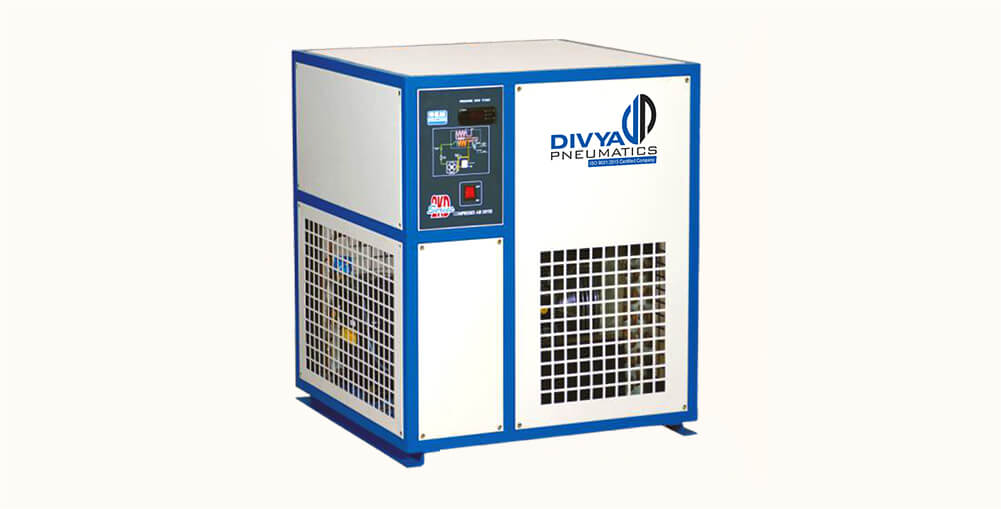

Air Dryer - 40 To 1250 CFM
  • Rate Power (kW)
    0.30 To 7.5
  • Net Weight (Kg)
    47 To 450
  • Warranty
    1 Year

Features

  • The 2KD7 series of dryers specifically designed for High Working Pressure
  • Maximum working pressure of 42 Bar Making them ideal for use in PET Industry.
  • The only one of its kind on the market, has built-in high efficiency pre-cooler.
  • The pre-cooler ensures a reduction of input pressure.
  • Performance and compactness of the machine reduces the pressure drop and allows quick and easy installation.

Technical Specifications


       MODEL        NORMAL CAPACITY (CFM) ELECTRICAL CONNECTION AIR CONNECTION (IN/OUT) RATE POWER (kW) OVERALL DIMENSION (MM) NET WEIGHT (Kg)
220V/1P/50HZ 415V/3P/50HZ
D2KD7 004 20 1/2" BSP(F) 0.28 360X425X550 47
D2KD7 006 40 1/2" BSP(F) 0.41 360X425X550 47
D2KD7 008 60 1" BSP(F) 0.48 550X450X685 80
D2KD7 010 80 1" BSP(F) 0.65 500X600X685 85
D2KD7 015 100 1" BSP(F) 0.72 500X600X685 85
D2KD7 020 150 11/2" BSP(F) 1.24 700X700X830 120
D2KD7 025 200 11/2" BSP(F) 1.24 700X700X830 135
D2KD7 030 250 11/2" BSP(F) 2.0 700X700X830 135
D2KD7 040 300 2" BSP(F) 2.0 900X900X1230 170
D2KD7 050 300 2" BSP(F) 2.0 900X900X1230 180
D2KD7 060 300 2" NB FLG 2.0 750X1000X1400 250
D2KD7 075 300 2" NB FLG 2.0 900X1200X1475 350
D2KD7 100 300 2" NB FLG 2.0 900X1200X1725 400
D2KD7 125 300 2" NB FLG 2.0 900X1200X1725 450
