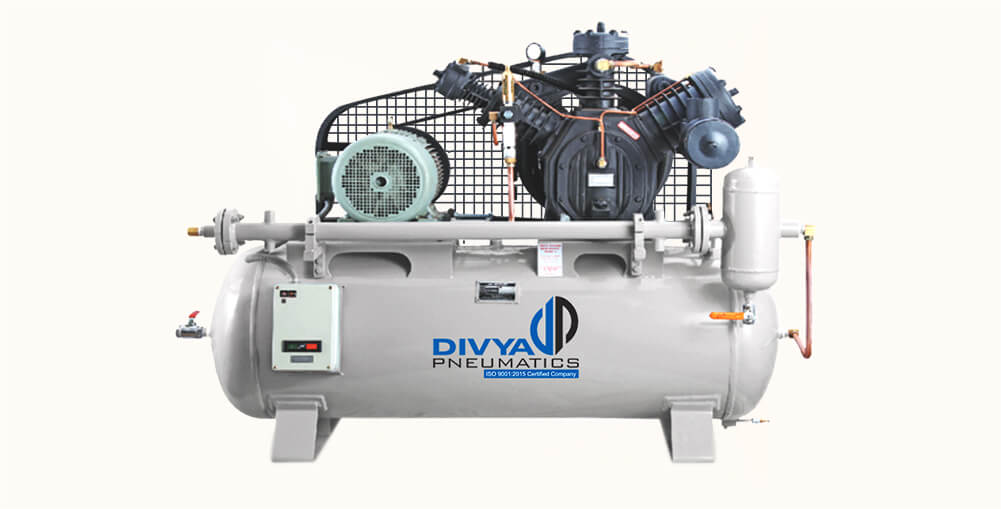

Reciprocating Multi Stage
High Pressure

Divya Pneumatics offers multi-stage high-pressure compressors with 2 or 3 cylinders, ensuring smooth, vibration-free performance through robust design, efficient inter-cooling, and crosshead support for the final stage piston.

  • HP
    3 HP To 30 HP
  • NO. OF CYL.
    2 To 3
  • Warranty
    1 Year

Applications

  • Pet Bottling
  • Air Blast Circuit Breakers
  • Pharmaceuticals
  • Gas Transmission & Distribution
  • Defence Establishments
  • Shipyards
  • Oil Exploration
  • Pneumatic-Testing
  • Engine Starting

Multi Stage High Pressure Compressors (17 - 70.30 Kg/cm2)


MODEL MOTOR NO. OF
CYL.		 RPM RECEIVER MAX. PRESSURE PISTON DISPL
HP KW CFT. LTRS. PSIG KG/CM2 CFM M3/M LTR/MIN
DP 251 3.0 2.20 2 675 5.30 150 500 35.15 7.60 0.210 210
DP 27T2 7.5 5.50 2 530 10.60 300 500 35.15 24.00 0.680 680
DP 27T2 10.0 7.50 2 710 10.60 300 500 35.15 32.25 0.920 920
DP 27T2 12.5 9.30 2 800 17.66 300 500 35.15 36.36 1.030 1030
DP 35T2 15.0 11.00 3 760 17.66 500 500 35.15 41.80 1.180 1180
DP 35T2 15.0 11.00 3 650 17.66 500 1000 70.30 35.75 1.010 1010
DP 35T2 20.0 15.00 3 900 17.66 500 500 35.15 49.50 1.400 1400
DP 35T2 20.0 15.00 3 900 17.66 500 600 42.18 49.50 1.400 1400
DP 35T2 20.0 15.00 3 900 17.66 500 800 56.25 49.50 1.400 1400
DP 35T2 20.0 15.00 3 875 17.66 500 1000 70.30 48.00 1.360 1360
DP 35T2TWIN 20+20 15+15 3+3 900 17.66 500 500 35.15 99.00 2.800 2800
DP 495T2 15.0 11.00 3 600 17.66 500 375 26.36 55.00 1.560 1560
DP 495T2 20.0 15.00 3 750 17.66 500 375 26.36 68.00 1.930 1930
DP 495T2 25.0 18.00 3 900 17.66 500 375 26.36 81.80 2.310 2310
DP 495T2TWIN 20+20 15+15 3+3 750 17.66 500 375 26.36 136.00 3.860 3860
DP 495TK 20.0 15.00 3 650 17.66 500 425 30.00 68.00 1.926 1926
DP 495TK 25.0 18.00 3 800 17.66 500 425 30.00 85.00 2.407 2407
DP 495TK 30.0 22.00 3 900 17.66 500 425 30.00 99.00 2.804 2804
